Engineered Precast

Box Culverts

Box culverts provide a strong and efficient solution for stormwater management, waterway crossings, and roadway drainage. Made from high-strength reinforced concrete, they offer superior durability, load-bearing capacity, and versatility for various infrastructure applications. Their rigid design allows for easy installation and long-term reliability, even in high-traffic areas.

  • Stormwater and flood control systems
  • Roadway and highway underpasses
  • Utility and pedestrian tunnels
  • Agricultural and irrigation water channels
  • Railway drainage systems

Designed and Manufactured to OPSS 1821, OPSS 912, CSA A23.4, CAN/CSA-S6-19

OPSS Sizes:

1800mm x 900mm - 3000mm x 2400mm


Coldstream Sizes:

3000mm x 3000mm - 7000mm x 3000mm

  • PRINCIPLE USES
    • Stormwater and flood control systems
    • Roadway and highway underpasses
    • Utility and pedestrian tunnels
    • Agricultural and irrigation water channels
    • Railway drainage systems
  • STANDARDS

    Designed and Manufactured to OPSS 1821, OPSS 912, CSA A23.4, CAN/CSA-S6-19

  • DIMENSIONS

    OPSS Sizes:

    1800mm x 900mm - 3000mm x 2400mm


    Coldstream Sizes:

    3000mm x 3000mm - 7000mm x 3000mm

With our modular formwork, Coldstream Concrete can produce the span and rise required to meet your project specifications.

Brochure Coming Soon

Chambers

Concrete chambers provide secure, long-lasting enclosures for stormwater, sanitary, and utility applications. Designed for durability and ease of access, they offer a robust solution for housing pumps, valves, and other infrastructure components. Their reinforced construction ensures resistance to environmental and structural stressors.

  • Utility and Hydro Vaults
  • Pump Stations
  • Valve Chambers
  • Wet Wells
  • Storage Tanks
  • Maintenance Holes

Designed and Manufactured to CSA A23.4, CAN/CSA-S6-19, OPSD 1101.012 - 1101.043

OPSS Sizes:

2400mm x 1800mm, 3000mm x 2400mm


Coldstream Sizes:

1200mm x 1200mm - 7000mm x 4000mm


Alternative sizes are available

  • PRINCIPLE USES
    • Utility and Hydro Vaults
    • Pump Stations
    • Valve Chambers
    • Wet Wells
    • Storage Tanks
    • Maintenance Holes
  • STANDARDS

    Designed and Manufactured to CSA A23.4, CAN/CSA-S6-19, OPSD 1101.012 - 1101.043

  • DIMENSIONS

    OPSS Sizes:

    2400mm x 1800mm, 3000mm x 2400mm


    Coldstream Sizes:

    1200mm x 1200mm - 7000mm x 4000mm


    Alternative sizes are available

Brochure Coming Soon
A large concrete pipe is being built in a dirt field.

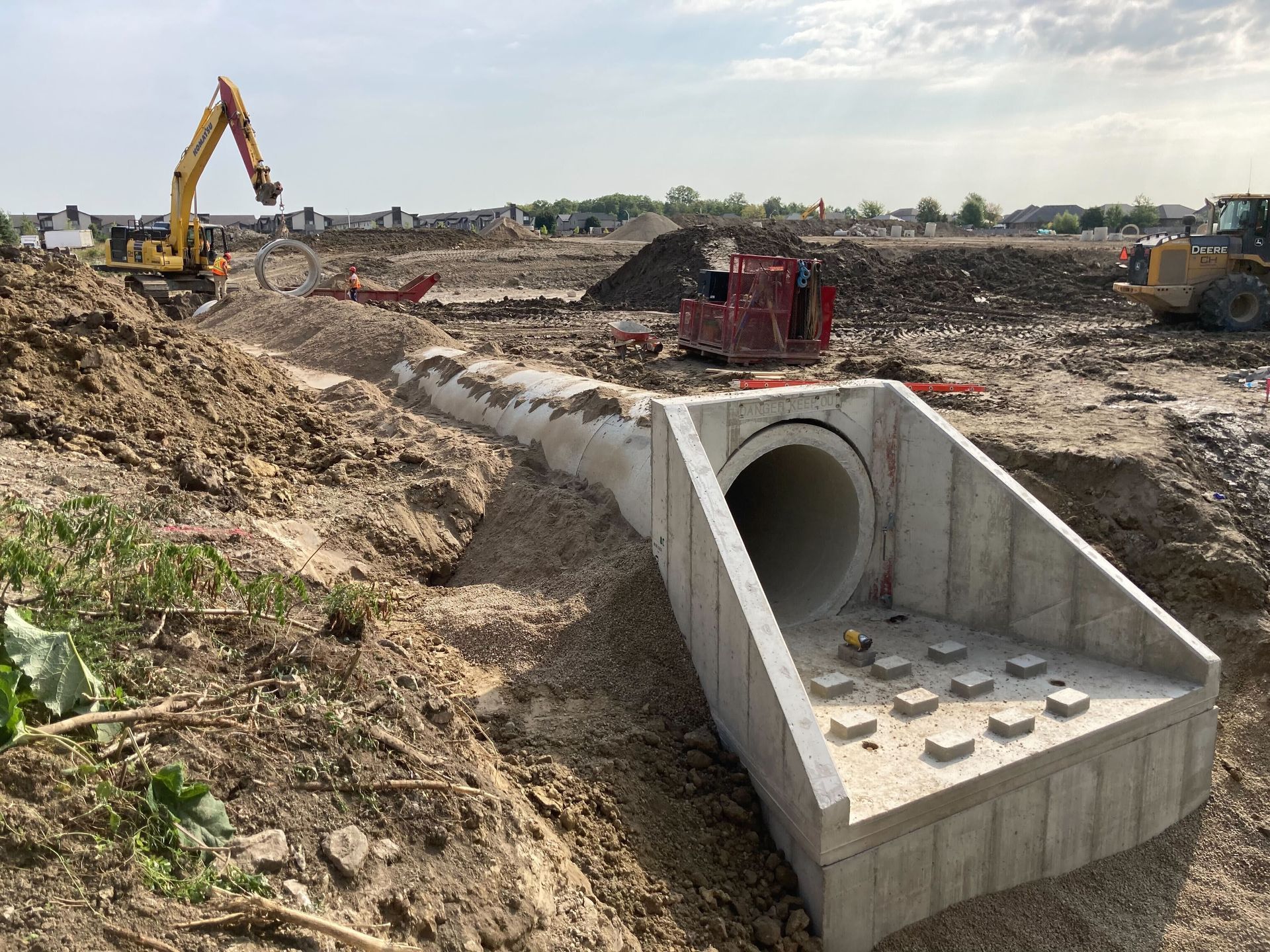

Headwalls

Headwalls stabilize drainage pipe outlets, prevent erosion, and direct water flow in stormwater and culvert systems. Made from reinforced concrete, they ensure durable structural support in any environment.

  • PRINCIPLE USES

    • Stormwater Management Ponds
    • Culvert Crossing End Treatments
    • Storm Water Outlets

  • STANDARDS

     OPSD 804.030, 804.040, 804.050

  • DIMENSIONS

    OPSD 804.030

    300mm - 900mm Diameter Pipe


    OPSD 804.040

    825mm - 2400mm Diameter Pipe

    1800mm x 900mm - 3000mm x 2400mm Box Culverts


    Alternative sizes are available

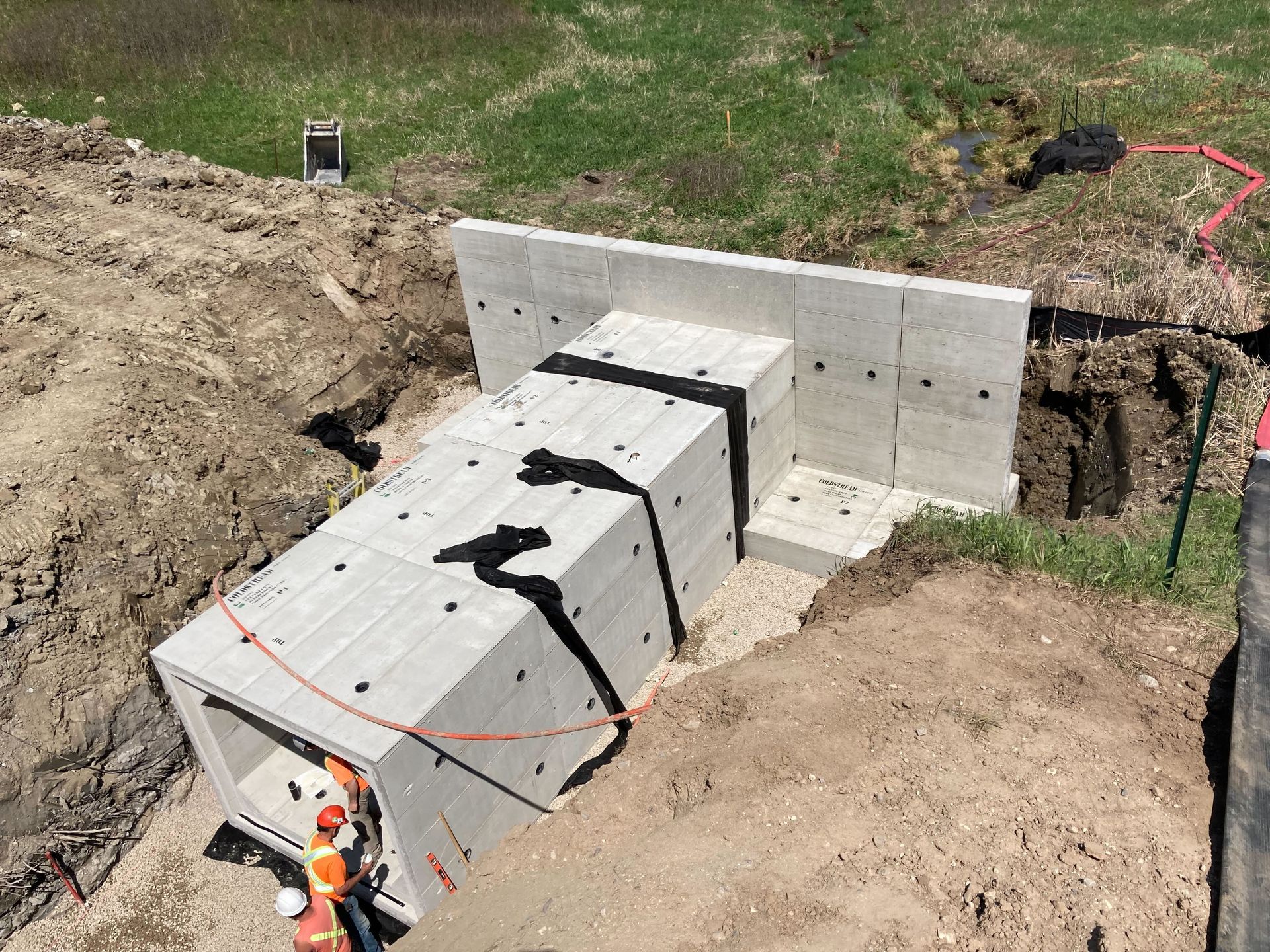

A group of construction workers are working on a large concrete structure in the dirt.

T-Walls
(Retaining Walls)

T-Walls are precast concrete retaining walls offering quick installation and reliable earth retention for commercial, municipal, and infrastructure projects.

  • PRINCIPLE USES

    • Culvert End Treatments
    • Retaining Wall Systems
    • Property Division / Management
  • STANDARDS

    CSA A23.4, CAN/CSA-S6-19

  • DIMENSIONS

    Up to 5000mm Tall and 3500mm Wide

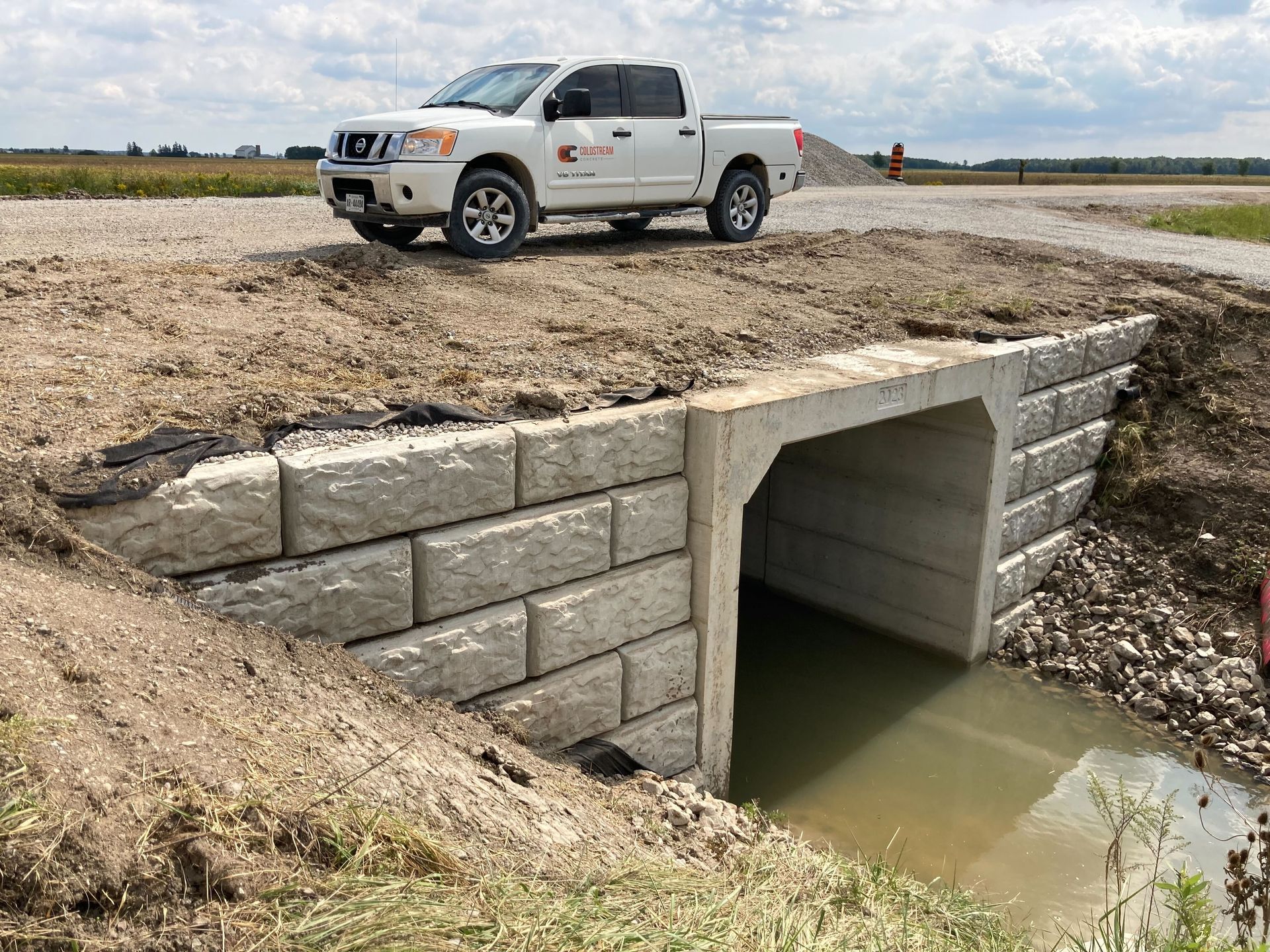

A white truck is parked on the side of a dirt road next to a concrete wall.

London Boulder Block

Blockwalls are durable, high-strength concrete retaining solutions, offering stability, easy installation, and resistance to weathering and soil pressure.

  • PRINCIPLE USES

    • Culvert End Treatments
    • Retaining Wall Systems
    • Property Division / Management
  • STANDARDS

    CSA A23.4, CAN/CSA-S6-19

  • DIMENSIONS

    Manufactured to LB42 Block System

    London Boulder Brochure

Holding Tanks & Cisterns

Holding tanks are a dependable solution for temporary or long-term storage in residential, commercial, and industrial applications. Constructed from reinforced concrete, they provide superior durability, leak resistance, and compliance with environmental standards.

  • Wastewater Disposal
  • Water / liquid storage
  • Pump station overflows
  • Firewater Storage

CSA A23.4, CAN/CSA-S6-19

Sizes:

1200mm x 1200mm - 7000mm x 4000mm


Alternative sizes are available

Button
  • PRINCIPLE USES
    • Wastewater Disposal
    • Water / liquid storage
    • Pump station overflows
    • Firewater Storage
  • STANDARDS

    CSA A23.4, CAN/CSA-S6-19

  • DIMENSIONS

    Sizes:

    1200mm x 1200mm - 7000mm x 4000mm


    Alternative sizes are available

Brochure Coming Soon

Our Services

Trusted Expertise for Every Project

View Our Services

Plant Tours

Discover How Innovation Meets Infrastructure – Take a Plant Tour!

Join us for an exclusive behind-the-scenes look at how our high-performance concrete products are made! From reinforced concrete pipes to custom precast solutions, see our production process in action and meet the team behind the quality.

Product in use

A construction site with a crane lifting a concrete box.
April 14, 2025
The removal and replacement of the Irwin drain culvert was successfully completed in November 2024 by Jones Group Inc. at the intersection of County Road 31 and County Road 8. Coldstream Concrete Ltd. was hired to manufacture and deliver 23.2 meters of a 5.0m x 2.8m box culvert. The precast concrete culvert was designed with custom features, including skewed ends, recessed connection plates, approach slab seats, and integrated infill sections, all cast directly into the culvert units. The entire culvert installation was efficiently completed in a single day.
Concrete pipes are stacked on top of each other in a dirt field
April 14, 2025
This vibrant community hub, spanning 57.5 hectares, includes 309 residential lots and 14 commercial/industrial blocks, providing homes for around 1,000 residents. The land was developed into eight streets, with the addition of a new pumping station and a 6-cell stormwater management pond. Featuring a wide range of Coldstream Concrete’s standard products, we successfully installed 3.5 kilometers of reinforced concrete pipe ranging from 300mm to 1800mm in diameter, multiple outlet headwalls, and over 350 round and square precast structures.
Western University Steam Tunnel Construction Site
April 14, 2025
This multi-year project, which began in 2023, is now entering its third year of construction. The project is being completed in phases with the assistance of London-based installation contractors. Every effort has been made to minimize any disruptions to students studying on campus. Phase 1 involved the installation of 64 meters of 1.5m x 0.9m steam tunnel with removable concrete lids. Phase 2 is currently in progress and, once finished, will extend the tunnel by an additional 130 meters, including the addition of a new hub to direct steam in four directions. To date, Coldstream Concrete Ltd. has produced 79 tunnel segments and 68 lids.
